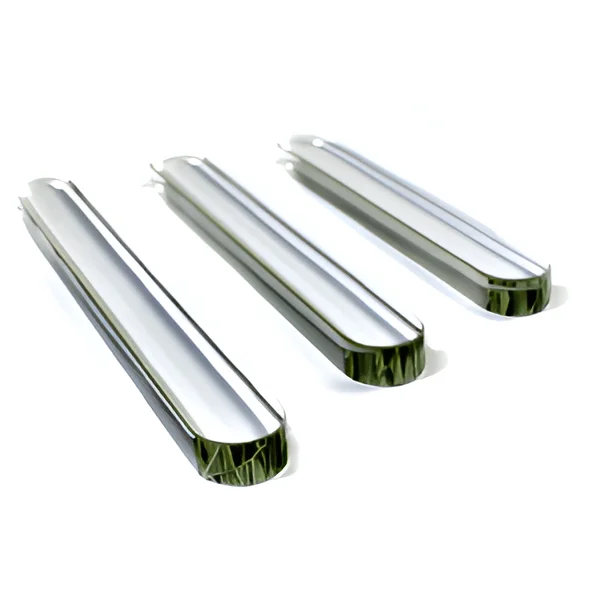

Tempered Borosilicate Level Gauges – Transparent
Made of borosilicate glass, these gauges are used in various applications where chemical resistance and low thermal expansion coefficient are required. Transparent level gauge glass is manufactured in compliance with the international DIN7081 standard, ensuring quality and reliability. To standardize these sight glasses across industries, the German regulatory institute, DIN, established standardized parameters for manufacturing this type of glass.
For FLAT level gauges, a system with two observation sides is used, allowing direct observation through the glass as the fluid rises or falls. These are primarily utilized in processes where the liquid’s color is critical or in applications requiring protective mica sheets.
| Application | PSI | °C |
|---|---|---|
| Non-corrosive fluid at room temperature, no steam, no chemical attack on the glass; in direct contact with the glass | 4000 | 30 |
| Non-corrosive fluid at room temperature, no steam, no chemical attack on the glass; in direct contact with the protective mica (only for flat sight glasses) | 5000 | 30 |
| Hot fluid or saturated steam in direct contact with the glass | 500 | 250 |
| Hot fluid or saturated steam in direct contact with the protective mica (only for flat sight glasses) | 1500 | 300 |
| Width b | Radio r | Length l | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | |
| 30mm | 15mm | 140 mm | 165 mm | 190 mm | 220 mm | 250 mm | 280 mm | 320 mm | 340 mm | – | – |
| 34mm | 17mm | 5-1/2” | 6-1/2” | 7-1/2” | 8-5/8” | 9-7/8” | 11” | 12-5/8” | 13-3/8” | 370 mm | 400 mm |
Borosilicate Level Gauges – Additional Information
| Chemical Properties | Hydrolytic Resistance | HGB 1 (ISO 719) |
|---|---|---|
| Acid Resistance | Class S1 (ISO 1776) | |
| Alkaline Resistance | Class A2 (ISO 695) | |
| Chemical Composition | SiO2 | Min 80% Content |
| B2O3 | Min 13% Content | |
| Na2O + K2O | Min 4.5% Content |
