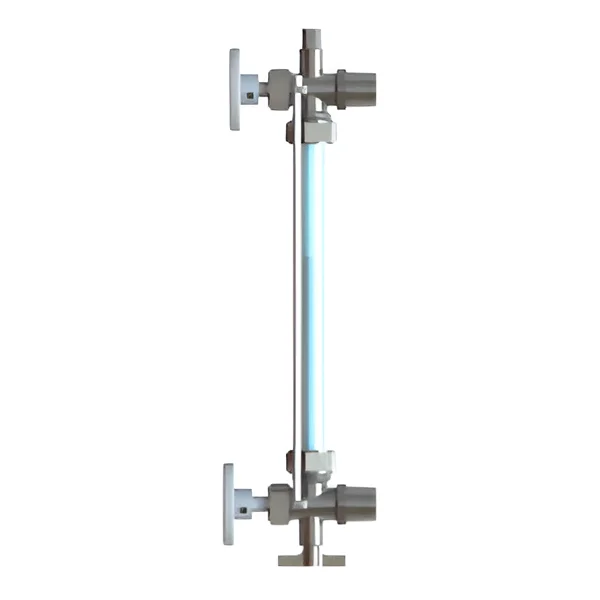

Why Should You Choose Iniflu Stainless Steel Level Indicator Valves
Iniflu valves are the perfect choice for customers seeking durable, high-quality valves. With superior design and precise manufacturing, our valves are made to meet the highest industry standards. We offer a single valve model that is versatile and suitable for a wide range of applications.
What Makes Iniflu Different from Other Brands
By offering a single model that fits a wide range of applications, we have been able to develop the most competitive valve on the market. We provide a high-quality product at a highly competitive price, ensuring that customers do not have to bear indirect costs, such as transportation, storage, and tariffs, typically associated with purchasing imported products.
As a result, our ZTV-25BR valves are well-positioned and have gained strong acceptance in both North and South American markets.

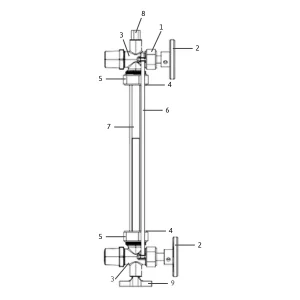

| Item | Part name | Material options |
|---|---|---|
| 1 | Stopper | SS304 / SS316 |
| 2 | Handle | Aluminum |
| 3 | Body (Upper & Lower) | SS304 / SS316 |
| 4 | Tubular Gasket | EPDM / Zyton |
| 5 | Tightening Nut | SS304 / SS316 |
| 6 | Protection Rods | Aluminum |
| 7 | Glass Tube | Borosilicate Polycarbonate |
| 8 | Vent | SS304 / SS316 |
| 8 | Drain | SS304 / SS316 |
Level Gauge Valves – Features
- Connection Type: NPT Threaded.
- Flow Indicator Type: Transparent / Red Line.
- Working Pressure: From 0 to 250 PSI.
- Working Temperature: From -45°C to 270°C.
- Gaskets Included: EPDM / Zyton.
- Handle: Aluminum.
- Drain: Bottom Ventilation.
- Safety Check: SS316 Safety Valve.
| TECHNICAL INFORMATION | ||||||||
|---|---|---|---|---|---|---|---|---|
| GLASS L | ROD L | TOTAL L | A | B | H | O | DRAIN | |
| 1/2″ | X – 2″ | X + 1″ | X + 2-5/8″ | 4″ MAX | 1-1/2″ | 3/4″ | 2″ | 3/8″-24 |
| 3/4″ | X – 2-1/4″ | X + 1″ | X + 2-7/8″ | 4-1/8″ MAX | 1-5/8″ | 3/4″ | 2″ | 3/8″-24 |
Stainless Steel Valves (Level Indicators) – More Details
How to Estimate the Length of the Glass Tube
Glass tube length = Center-to-center distance – 2”
How to Estimate the Length of the Protection Rods
Rod length = Center-to-center distance + 1”
How to Estimate the Total Length of the Equipment
Total length = Center-to-center distance + 2-5/8”
The Level Vision Sight Glasses from Iniflu are designed to offer precise and safe monitoring of liquid levels in tanks and industrial systems. Made with high-quality materials, our sight glasses ensure long durability and resistance to extreme conditions. Discover today the range of level vision sight glasses that Iniflu has for you.
At Iniflu, we value open and effective communication. If you have any questions or need further information about our products and services, feel free to contact us. We are here to help and respond to your needs.
