Stainless Steel Double Window Flow Indicators are devices used in various industrial applications to monitor the flow of liquids in pipelines.

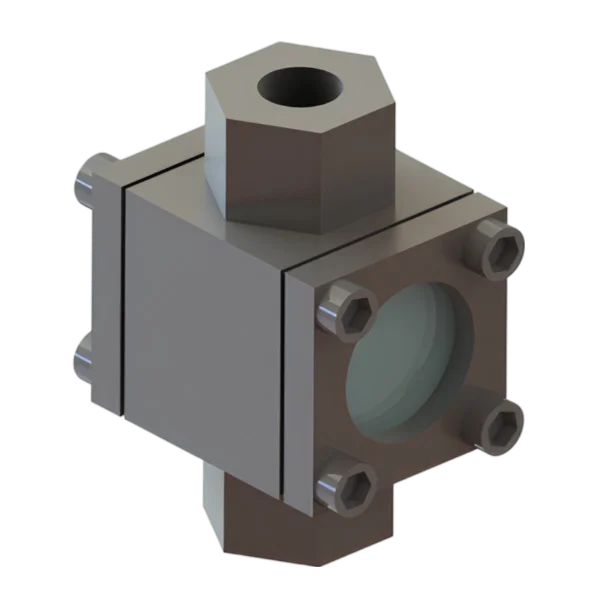

Threaded Double Window Indicator
They feature a cylindrical body made of stainless steel, a durable and corrosion-resistant material. The key characteristic of these indicators is the presence of two windows, typically made of tempered glass or acrylic, positioned opposite each other. These windows provide a clear view of the fluid passing through the indicator.
Stainless Steel Flow Indicators – Applications:
These double-window threaded flow indicators are particularly useful in food and beverage processing, pharmaceutical, chemical, and other industries where direct observation of tank contents is essential for process monitoring and control.
| Item | Part name | Material options |
|---|---|---|
| 1 | Allen Bolts | Stainless Steel 304 |
| 2 | Cover Flange | Stainless Steel 316L Stainless Steel 304 |
| 3 | Gasket | Buna Neoprene Teflon Sanitary Rubber EPDM Viton |
| 4 | Sight Glass(max temp) | DIN7080 Tempered Borosilicate (280°C) Thermo tempered Polycarbonate Quartz |
| 4 | Body | Stainless Steel 316L Stainless Steel 304 |
Installation:

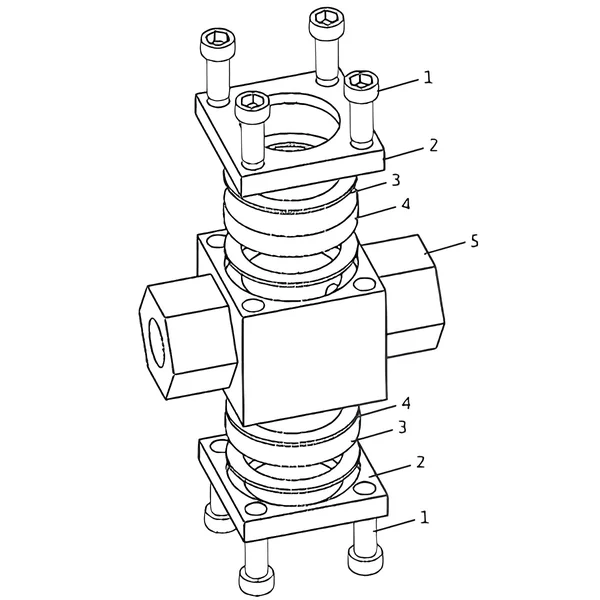

The numbers in the following installation instructions refer to the diagram above.
After correctly welding the cover flange (2) to the vessel wall, assemble the gasket (3), the sight glass (4), the gasket (3), and the cover flange (2) in that order.
Tighten the bolts (1) according to the torque values indicated in the technical information table (always tighten bolts in diametrically opposite sets).
Threaded Double Window Indicator – Benefits
Enhanced Quality Control:
Enables direct visual inspection, helping to prevent quality issues before they escalate.
Operational Safety:
Allows observation without opening the tank, minimizing exposure to hazardous substances.
Ease of Maintenance:
Weldable and robust design simplifies installation and maintenance of the sight glass.
| TECHNICAL INFORMATION | ||||||||
|---|---|---|---|---|---|---|---|---|
| Measure | 1/4″ NPT | 3/8″ NPT | 1/2″ NPT | 3/4″ NPT | 1″ NPT | 1-1/4″ NPT | 1-1/2″ NPT | |

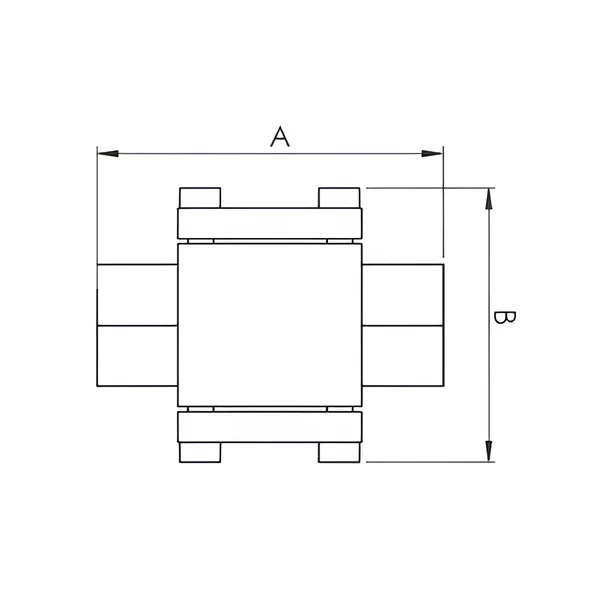

| A (Dist between faces) | 3.25″ (82.55mm) | 3.25″ (82.55mm) | 3.25″ (82.55mm) | 4.25″ (107.95mm) | 4.25″ (107.95mm) | 5.25″ (133.35mm) | 5.25″ (133.35mm) | |
| B (Dist between caps) | 2.25″ (57.15mm) | 2.25″ (57.15mm) | 2.25″ (57.15mm) | 3.25″ (82.55mm) | 3.25″ (82.55mm) | 3.5″ (88.9mm) | 3.5″ (88.9mm) | |

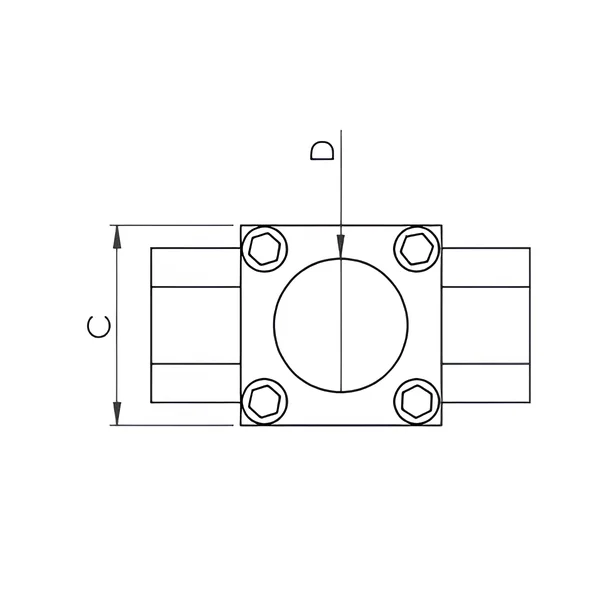

| C (Max Width) | 1.75″ (44.45mm) | 1.75″ (44.45mm) | 1.75″ (44.45mm) | 2.25″ (57.15mm) | 2.25″ (57.15mm) | 3″ (76.2mm) | 3″ (76.2mm) | |
| D (Visible Diameter) | 1″ (25.4mm) | 1″ (25.4mm) | 1″ (25.4mm) | 1.5″ (38.1mm) | 1.5″ (38.1mm) | 2″ (50.8mm) | 2″ (50.8mm) | |
